Engine drops without the mess.
Anyone driving an air-cooled VW or Porsche knows the drill: sometimes the engine just has to come out. Whether it's for a clutch job, a new setup, or major maintenance.
But disconnecting the fuel line between the chassis and the engine has always been an annoying hassle involving hose pinchers, improvised plugs, and the inevitable puddle of gas on the garage floor. With our quick-release couplings, that's history. One click, the line is disconnected, and both halves instantly lock 100% tight.
This makes your next engine drop incredibly relaxed and, above all, safe.
Clean disconnect. Maximum safety.
Double shut-off: Leak-free.
The moment you hit the release button, the valves in both halves shut instantly.
No spills, no drips, no fire hazard on hot heat exchangers. Just a perfectly clean job.
Engine-Drop without hassle.
If you pull your flat-four from time to time, you'll love this tool.
Cutting the fuel supply to the engine goes from an annoying hassle to a simple, quick move—completely without tools or hose pinch-off pliers.
Premium quality for modern fuels.
Equipped with highly resistant seals.
Seals made of FPM/Viton don't just hold tight under pressure; they are permanently resistant to aggressive modern fuels and E10.
Premium Dual-Shut-Off Fuel Quick-Disconnect. Nickel-plated brass. Suitable for fuel lines with 6 mm or 8 mm inner diameter. Resistant to E10 pump gas and harsh modern fuels, and engineered with a rugged, secure release mechanism for lightning-fast, mess-free tear-downs.
Operating temperatures from -20°C to +100°C
Maximum static pressure of 35 bar (500 psi) under non-pulsating conditions.
Main body length: 46 mm
Hose barbs: 17 mm each
Maximum outer diameter: 16 mm
Weight: 80 g

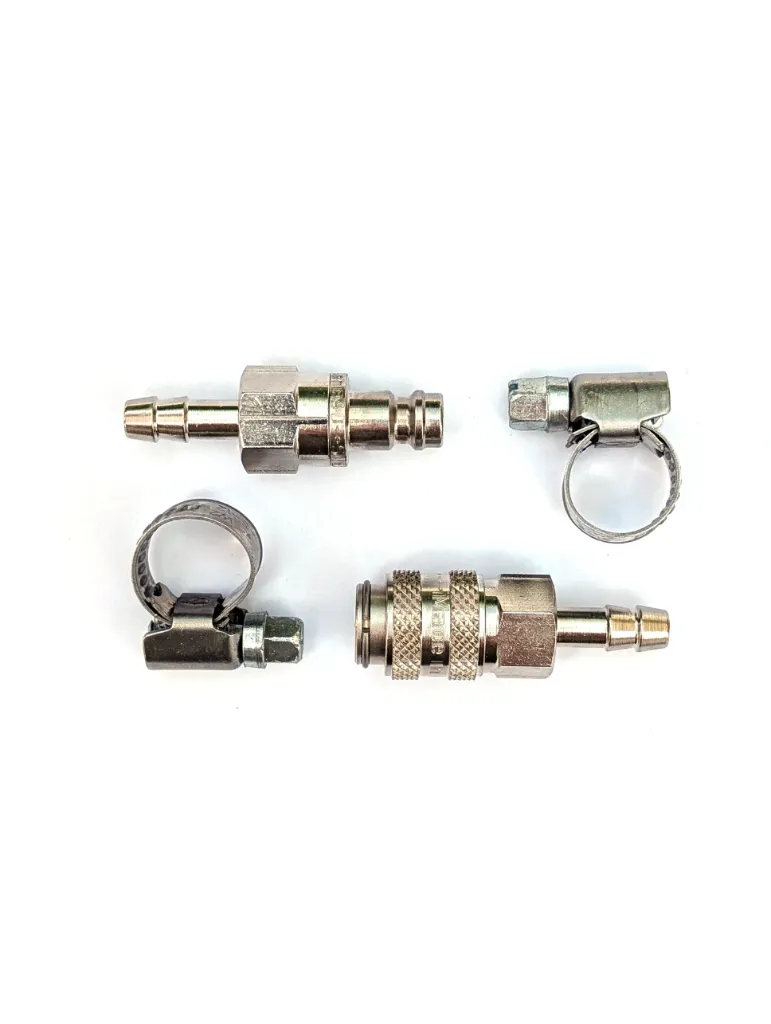

You will get one quick release fuel connector consisting of one male and one female part, also included are two hose clamps.
Simply splice it into your existing flexible fuel line and secure it with the included hose clamps. Pick a sensible mounting spot where the coupling is easily accessible, ensuring the hose isn't stretched or kinked.
Place the coupling where you can reach it easily, but keep it safely away from direct heat (e.g., the exhaust) and sharp sheet metal edges. The next time you lower that engine onto your floor jack, you'll thank us for this upgrade.
Achtung:
Werden diese Schnellverschlusskupplungen in bestehenden Schläuchen montiert, kann es an den Anschlüssen trotz der Schlauchschellen zu Undichtigkeiten kommen. Im Zweifel empfiehlt sich immer die Verwendung von neuen hochwertigen Kraftstoffschläuchen.
Stop the mess.
Get this clever upgrade for your fuel system and make your next flat-four engine drop the cleanest job ever.
