Vacuum port for IDF carburettors
Vacuum port retrofit kit for IDF carburetors
This retrofit solution is designed for all IDF series carburetors. These vacuum ports enable perfect synchronization of dual carburetor systems and provide a reliable vacuum signal for controlling electronic distributors, such as 123 Ignition.
Vaccum port for IDF Carburettors.
Retro-Fit.
Vacuum ports for the popular IDF carburetor series.
Using vacuum gauges, these ports enable quick and precise synchronization of dual carburetor systems. Furthermore, they provide the necessary vacuum signal for programmable electronic distributors, such as 123 Ignition.

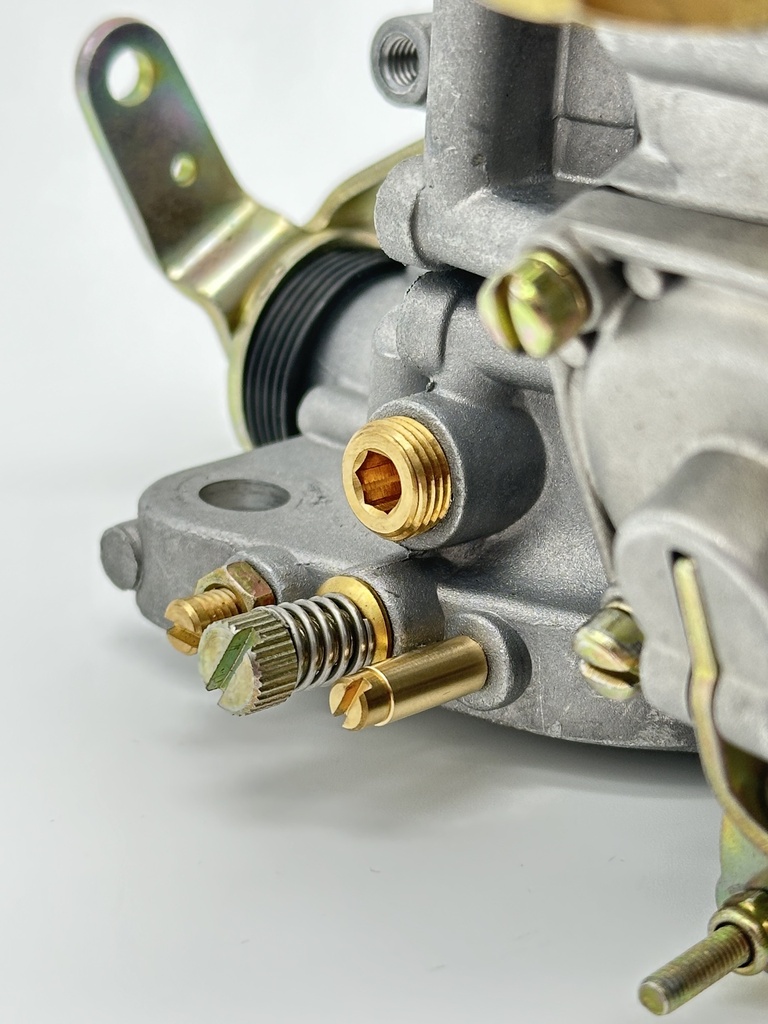

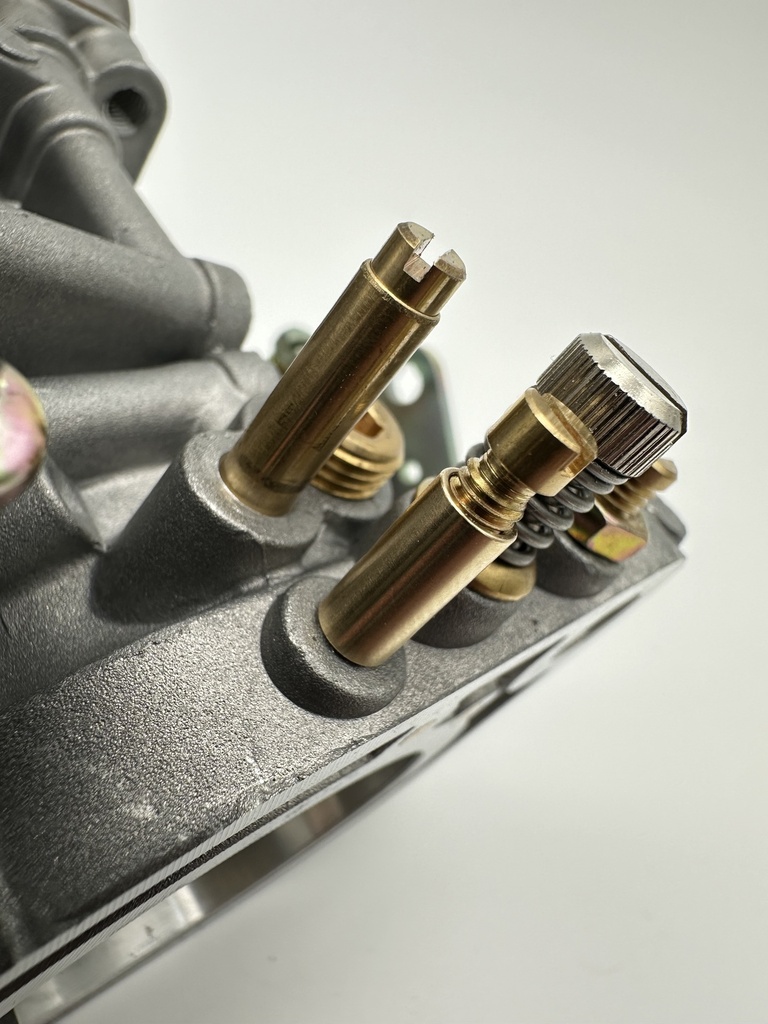

These ports can be retrofitted to existing systems by removing the original blanking plugs and installing the vacuum ports in their place. After synchronization, the original blanking plug is screwed into the vacuum port, sealing it when not in use.
These ports are a standard feature on all our Fritz Fahrkraft IDF carburettors.
A must-have if you want the synchronization of your dual carburetor system to be quick, easy, and flawless from now on.

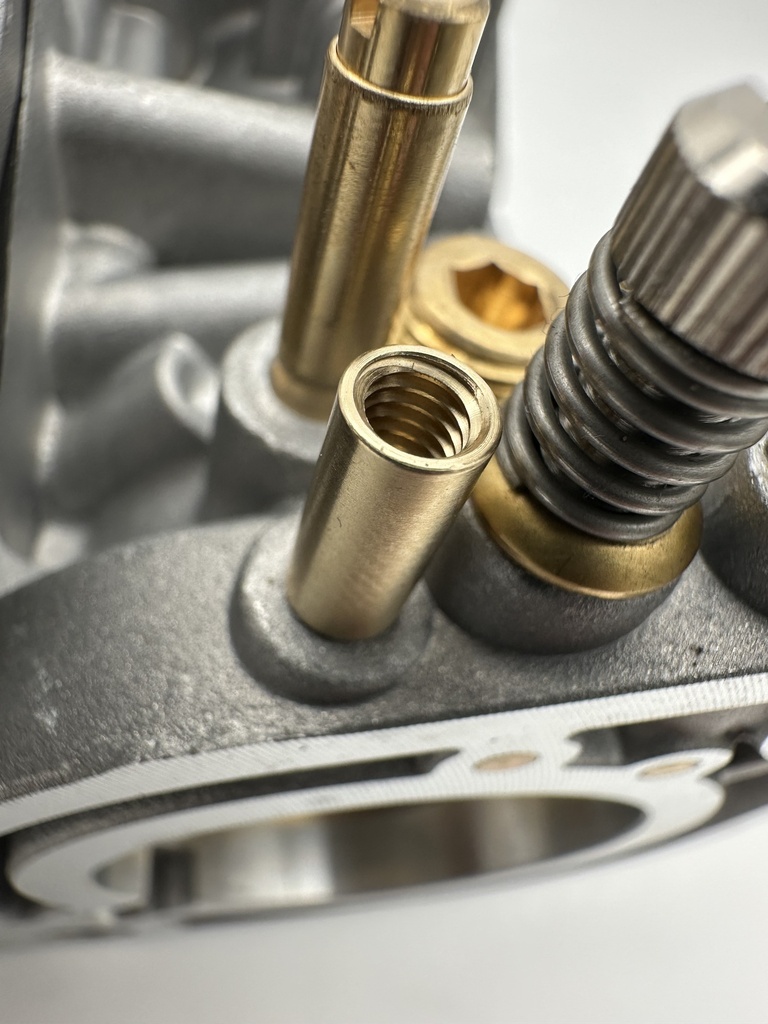

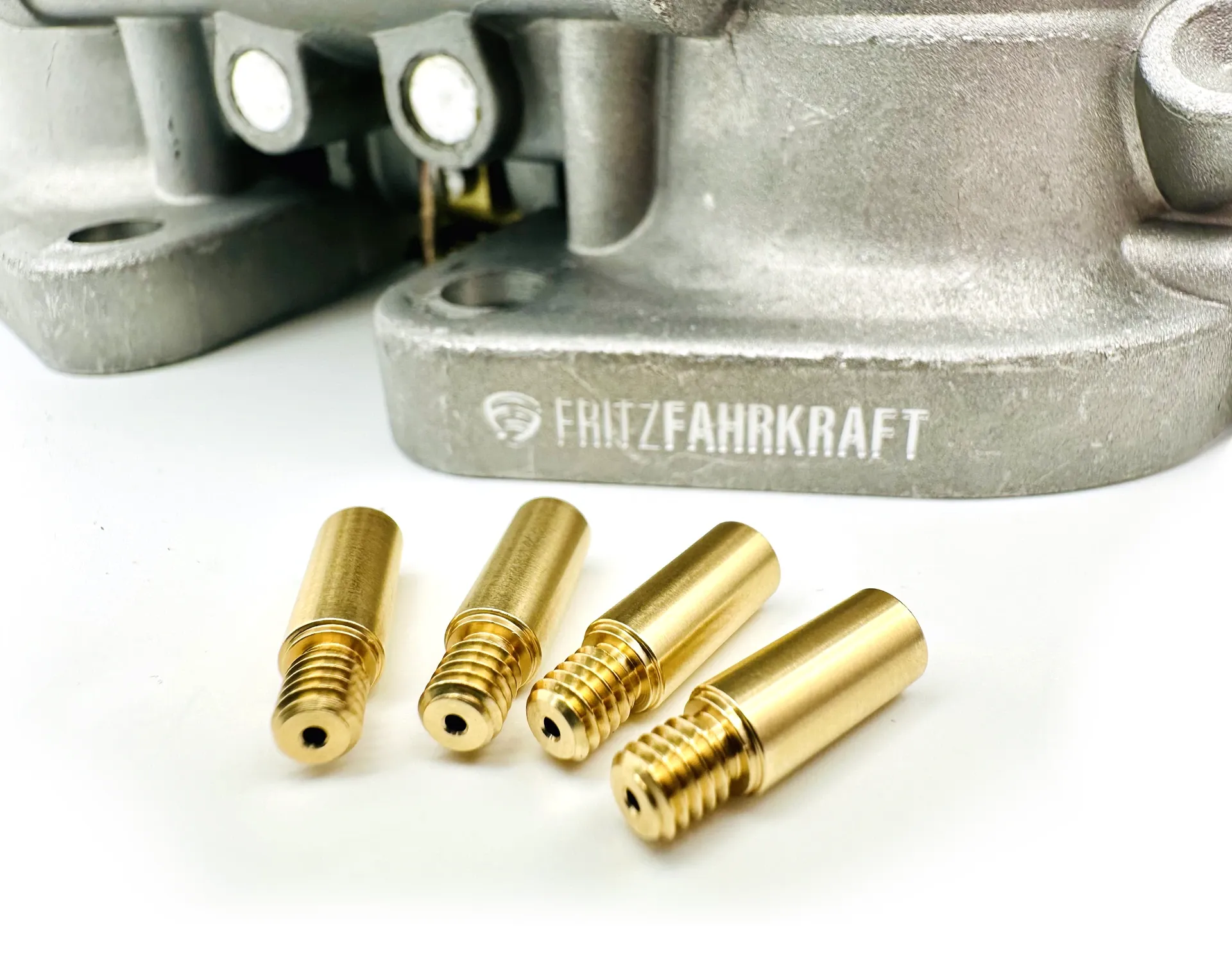

The turned brass parts have an overall length of 16 mm and are equipped with M4 internal and external threads. The shank has a diameter of 5 mm and protrudes 11 mm from the housing.
Suitable for Weber IDF and comparable carburetors.
Includes a set of 4 vacuum ports.
For permanent installation in the carburetor, the vacuum ports should be secured using a high-temperature threadlocker.
