Fuel Connection 6mm
For use of the original fuel pump

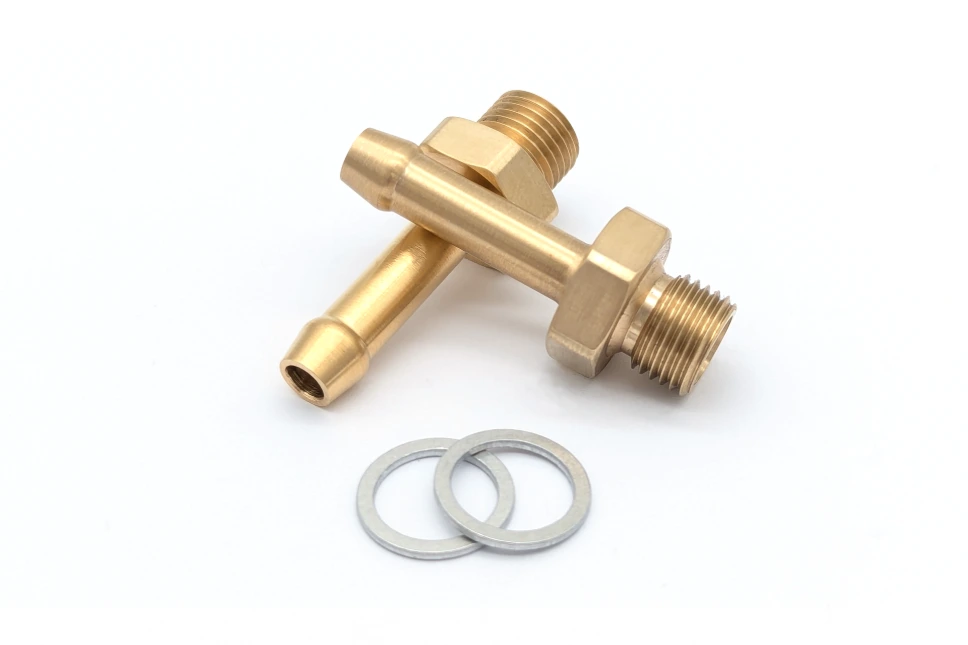

This fuel connector is made of 100% brass and replaces the 8mm standard connector.
Fritz Fahrkraft 6mm Fuel Connection.
Seamless.
Every available IDF Carburettor is supplied with 8mm fuel connections. This is perfect if you are planning to use an electric fuel pump with all the consequences attached to it, like installing a safety relay as well as changing the fuel lines from the outlet of the gas tank through the tunnel all the way to your carbs to 8mm. The short cut – just adapting the lines after the tunnel – comes at the cost of more adapters and thus higher risk of leakage and worst-case – fire.
Fritz Fahrkraft now offers a solution for moderately tuned engines – 6mm fuel inlets for IDF carburettors. Change your 8mm inlets to 6mm and continue to use your mechanical fuel pump as well as the original lines. Fritz Fahrkraft’s own IDF carburettors come factory fitted with either 8mm or 6mm fuel inlets by the customer’s choice.
Made of solid brass
- 100% Brass
- Fits all IDF Carburettors
2 Fuel Connections
2 Seals
Working on the fuel supply carries significant risks. Only perform this work if you have the appropriate professional qualifications.
Vacuum ports for the popular IDF carburetor series.
Using vacuum gauges, these ports enable quick and precise synchronization of dual carburetor systems. Furthermore, they provide the necessary vacuum signal for programmable electronic distributors, such as 123 Ignition.
These ports can be retrofitted to existing systems by removing the original blanking plugs and installing the vacuum ports in their place. After synchronization, the original blanking plug is screwed into the vacuum port, sealing it when not in use.
These ports are a standard feature on all our Fritz Fahrkraft IDF carburettors.
A must-have if you want the synchronization of your dual carburetor system to be quick, easy, and flawless from now on.
The turned brass parts have an overall length of 16 mm and are equipped with M4 internal and external threads. The shank has a diameter of 5 mm and protrudes 11 mm from the housing.
Suitable for Weber IDF and comparable carburetors.
Includes a set of 4 vacuum ports.
For permanent installation in the carburetor, the vacuum ports should be secured using a high-temperature threadlocker.
