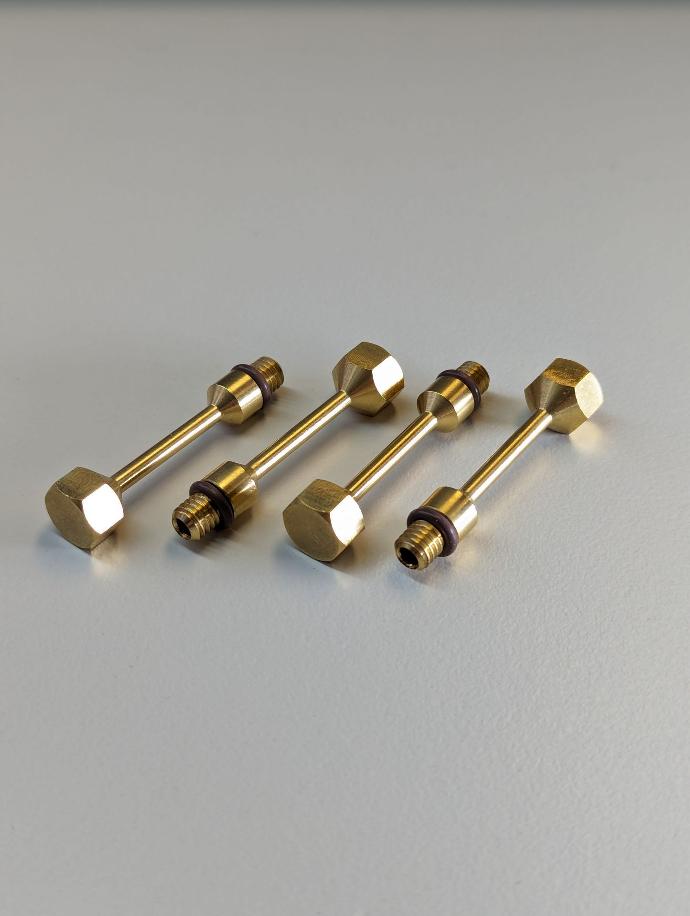

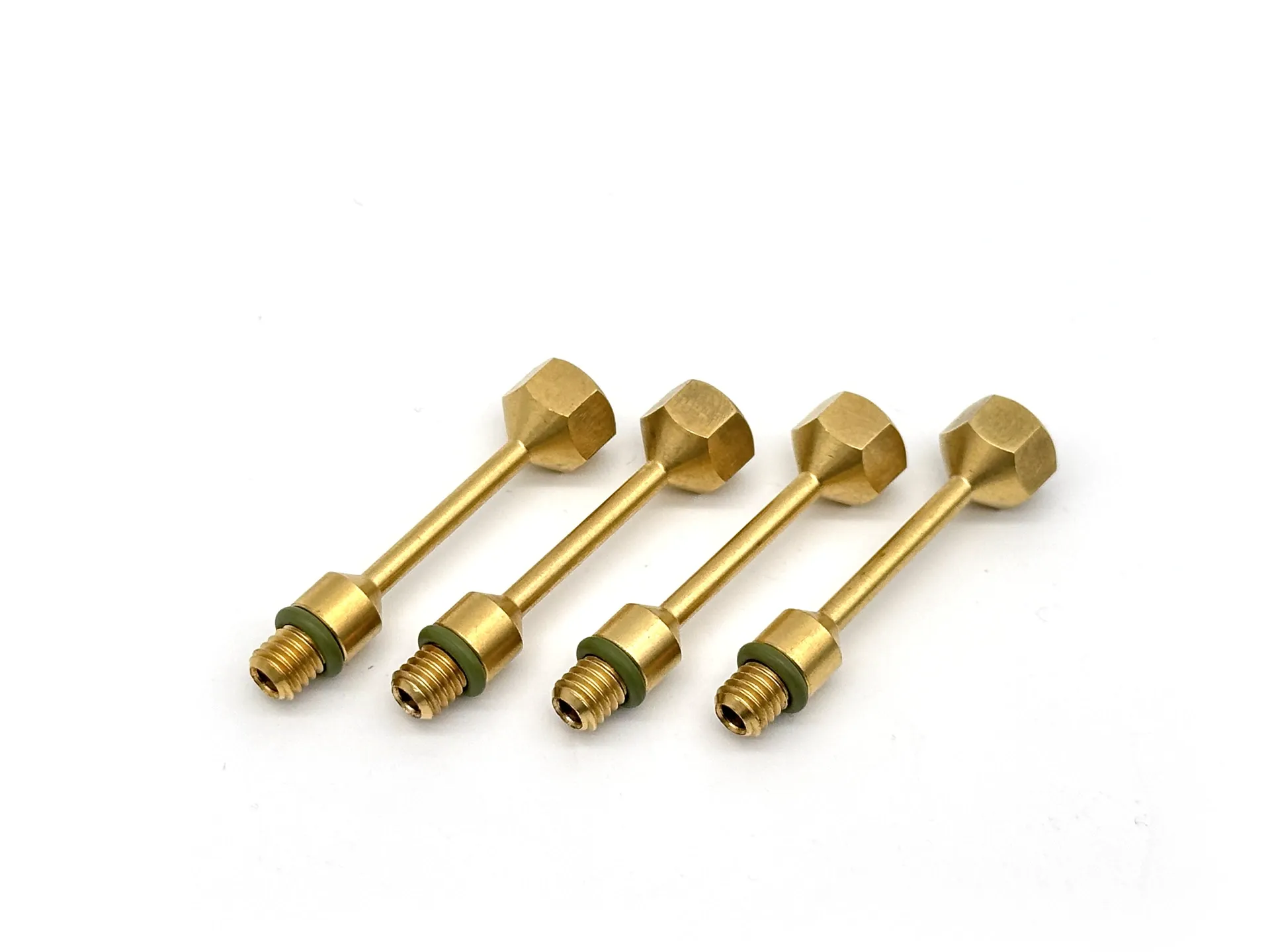

IDF idle jet holder.
Extended.
Idle jet holders, suitable for dual carburettors of the IDF series.
These extended holders allow the replacement of the idle jets with the carburettor installed, and even without relying on service cutouts. The holders can simply replace the existing holders. A 10 mm open-end wrench is required for installation and removal.
These extensions are our preferred choice, and we fit them as standard on all our dual carburettors.
Essential for anyone about to tune their dual carburetors and looking for a hassle-free experience.
The brass turned parts have an overall length of 45.2 mm and are equipped with a fuel-resistant O-ring with dimensions of 4.48 x 1.78 mm. The shaft has a diameter of 3 mm.
Fits Weber IDF and equivalent carburetors.
You will receive a set of 4 jet holders, complete with O-rings
The idle jet holders are designed with an inner diameter to accommodate the largest commercially available jets. If the idle jets fit too loosely, they can be slightly bent open at their ends.
Vacuum ports for the popular IDF carburetor series.
Using vacuum gauges, these ports enable quick and precise synchronization of dual carburetor systems. Furthermore, they provide the necessary vacuum signal for programmable electronic distributors, such as 123 Ignition.
These ports can be retrofitted to existing systems by removing the original blanking plugs and installing the vacuum ports in their place. After synchronization, the original blanking plug is screwed into the vacuum port, sealing it when not in use.
These ports are a standard feature on all our Fritz Fahrkraft IDF carburettors.
A must-have if you want the synchronization of your dual carburetor system to be quick, easy, and flawless from now on.
The turned brass parts have an overall length of 16 mm and are equipped with M4 internal and external threads. The shank has a diameter of 5 mm and protrudes 11 mm from the housing.
Suitable for Weber IDF and comparable carburetors.
Includes a set of 4 vacuum ports.
For permanent installation in the carburetor, the vacuum ports should be secured using a high-temperature threadlocker.
